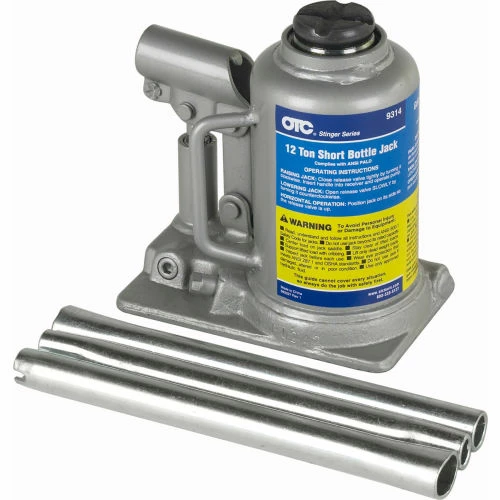

OTC 12 Ton Short Bottle Jack

Bottle jacks are used for a wide range of lifting applications, both in the shop and for roadside service. They provide a high level of lifting capacity in a very compact and portable unit.

Features and Benefits:

• Forged base and cylinder to ensure strength and eliminate leaks
• Chromed pump piston and ram for additional rust resistance
• In-line design for increased ease of use in positioning and operation
• Includes free seal kit with each unit to extend product life
• ANSI/PALD compliant

Specifications:

• Stroke – 3-11/16″
• Retracted Height min. – 7-1/16″
• Length of Screw Extension – 2-7/8″
• Height with Screw Extension – 13-5/8″
• Pump Strokes to Extend Piston One Inch – 21
• Saddle Dia. – 1-3/4″
• Base Size – 6-9/16″ x 4-3/16″
• Carry Handle – Yes
• Weight – 15.1 lbs.
